ALmatic – Semi Automatic Labeling Machine

ALmatic labeler’s function requires the operator to manually place the product in the labeling position and then activate the control lever. ALmatic provides label distribution and application. It is suitable for plastic, glass or metal bottles, phials and pots.

ALmatic can apply labels up to 8” in width onto bottles, phials and pots, flat or elliptical (ALmatic E), or cylindrical products (ALmatic C)  of variable diameter  from a minimum of ½” to a maximum of 4”.

Thanks to the system's ergonomics and to the presence of the sliding ball guides, it permits precision labelling, significantly facilitating manual product positioning operations.

ALmatic semi-automatic labeler can be equipped either with an ALstep or an ALritma labeling head. This allows the system to take advantage of the features and electronic functions of the labelling head. Thanks to its modular construction, the ALmatic unit can incorporate all the accessories available for the labeling head used (for instance, a thermal transfer printer for printing variable data).

Last but not least, the same head can also be used for future integration with faster automatic systems.



Technical data sheet

  • Table top support with adjusting bracket
  • Labelling heads options:  ALstep E, S, M (up to 200mm label width),  ALritma (up to 300 mm).
  • Sliding system for product positioning equipped with automatic start up sensor.
  • Powered rollers for cylindrical products from 12 up to 110 mm diameter (ALmatic C)
  • Encoder for label distribution speed upgrade according to sliding system for product positioning manually movement speed, to reach a perfect labelling (ALmatic E)

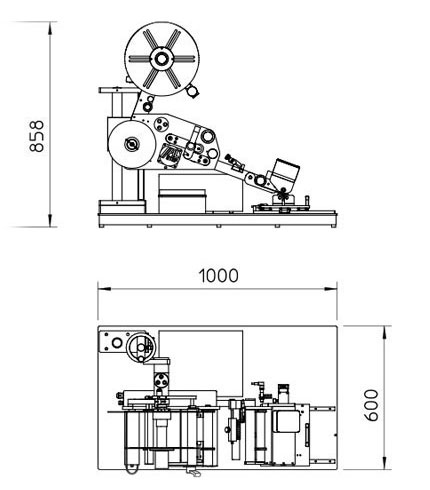

Esempio di configurazione

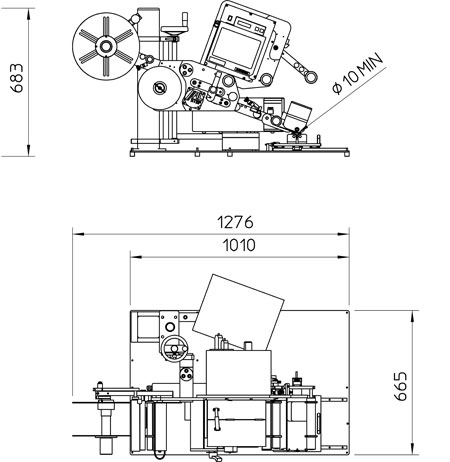

Configurazione ALmatic con unità Print/Apply
